Description:

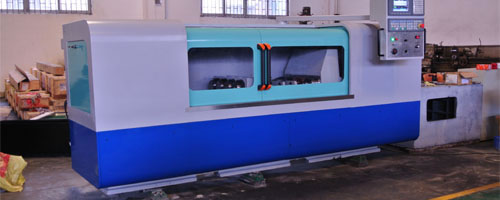

4-spindle gun drilling machine is a newly-developed automatic machine by our company and it is mainly applied in deep hole processing. With 4 shafts, the machine can greatly improve work efficiency. Our company is professional CNC gun drilling machine supplier in China, thus we can assure you good quality and excellent service.
Note:
Custom-made 4-spindle gun drilling machine is available.
Application:
4-spindle gun drilling machine is mainly used for deep hole processing, like center hole processing and eccentric hole processing of bar.
Features:
1. The machine can greatly improve work efficiency with multi spindles working together.
2. High precision and fine surface finish can be guaranteed with cone hole and high pressure cooling oil.
3. 4-spindle gun drilling machine is characterized by fast drilling, simple operation, economical operation.
4. Straight and single-angle drillings (with optional rotary table)
5. Mechanical transmission adopts internal circulation ball screw with high precision.
6. 4-spindle gun drilling machine supports digital control system to make operation easy and fast.
7. Z axis supports linear guided stage to ensure the high precision.
8. The machine is equipped with deep hole cutting cooling system which can supply different flow rate and pressure according to size of drill.
9. 4-spindle gun drilling machine adopts stepless speeding regulating, which ensure the large sale of speeding regulating and reasonable power configuration.
10. Z axis supports linear guided stage to ensure the high precision.
11. The machine reaches an advanced level among other drilling machine in performance, precision, scale of processing, operation and work efficiency.
Detail:
|
Model
|
NCSD4Z-600 CNC gun drilling machine
|
|
Index
|
unit
|
|
|
Diameter scope of gun drill (mm)
|
mm
|
3~16
|
|
Drill hole depth
|
mm
|
600
|
|
Distance of drill pipe box (Z axis)
|
mm
|
650
|
|
Maximum rotation speed of main shaft
|
r /min
|
6000
|
|
Rotation speed of workpiece
|
r /min
|
200
|
|
Speed of main shaft feeding
|
mm/min
|
0~1000
|
|
Motor power of main shaft
|
kW
|
5.5x2
|
|
Motor power of workpiece rotation
|
kW
|
0.75X4
|
|
Maximum Diameter of workpiece
|
mm
|
Φ72
|
|
Maximum length of processing part
|
mm
|
700
|
|
Pressure scale of chipping cooling liquid
|
MPa
|
3~10.5
|
|
Flow scale of chipping cooling liquid
|
L/min
|
0~130
|
|
Total power of the machine
|
kW
|
35
|
|
Size of drilling machine
|
|
4200x2800x1800
|
|
Weight of drilling machine
|
Ton
|
3.5
|
|
CNC device
|
|
new digital control system
|
Standard fittings:
Transformer
Chip cleaner
Oil temperature control machine
Main shaft
Available accessories:
Guide sleeve
Tool sharpening machine
Chipping oil
Deoiler
Rubber sheath
Drill
