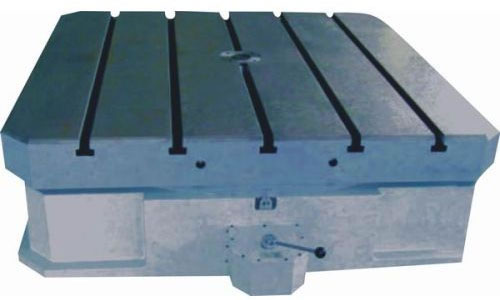

Rotary Work Bench (NCJT)

Description:

Rotary work bench is mainly used in machine tool to achieve multi-angle processing. There are five types, NCJT500, NCJT800, NCJT1200 and NCJT1600. The size of these rotary work benches is 500×500mm, 800×800, 1000×1000mm 1200×1200mm, 1600×1600mm relatively.

Advantages:

1. Competitive price
Our products have very competitive price because of reasonable design and scientific calculation.
2. We have various rotary work benches for you to choose.
3. Good quality
As an experienced manufacturer of mechanical products, we can ensure you good quality and excellent service.

Parameter:

Project	NCJT500 rotary work bench	NCJT800	NCJT1000 rotary work bench	NCJT1200	NCJT1600
Size of work bench (mm)	500×500	800×800	1000×1000	1200×1200	1600×1600
Total thickness (mm)	190	290	290	340	420
Positioning hole(mm)	14	18	18	22	28
Travel of work bench at the time of loosing/locked (mm)	5	6	6	6	6
Air pressure of work bench at the time of loosing/locked (kg/cm²)	5-8	5-8	5-8	5-8	5-8
Rotation method	Manually	Manually	Manually	Manually	Manually
Minimum scale mark	5	5	5	5	5
Maximum load capacity (t)	2.4	5.5	5.5	8	9
Coupling mechanism force (t)	2.8	5.9	6	10	11
Total weight (t)	0.6	1.4	1.7	3.4	4.5
