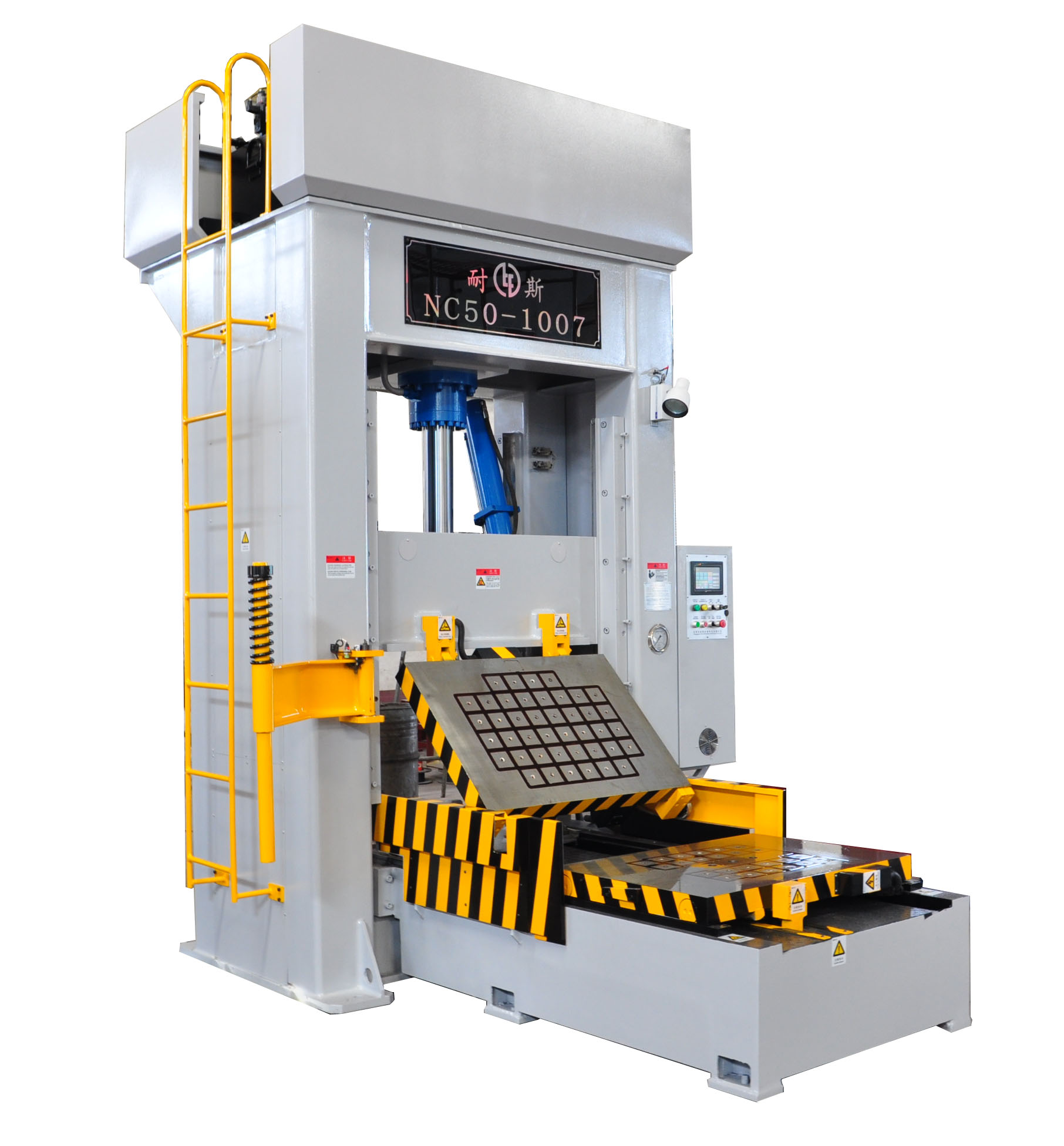

Vertical Die Spotting Press (Pressure Plate Model)

Vertical Die Spotting Press (Pressure Plate Model)

Description:

The vertical die spotting machine is widely used in repair or verification of mold and it is suitable for medium and large mold. Compared with traditional die try-out press, vertical die spotting machine adopts electric magnetic chuck, thus it is unnecessary to fix the screws. Therefore, it can save time and save labor. The vertical die spotting machine is the only one that adopts electric magnetic chuck in the world. Our company is a professional manufacturer of die spotting press in China.

Types:

NC30-0806 NC50-1007 NC70-1007 vertical die spotting machine NC100-1310
NC120-1310 NC150-1511 (Magnetic electric die spotting press) NC200-1813 NC300F-2015 vertical die spotting machine
NC300-2518 NC400-3020 NC500-3525


Application:

The vertical die spotting machine is widely applied in adjustment and maintenance of plastic die and hardware die.
The newly-developed machine initiates a revolution in mold-processing industry. The machine replaces the traditional simple fitting of knocking by copper bar because of its fast and automation operation, which greatly improves efficiency and precision of die spotting press.

Features:

1.Complete safety facilities
There are complete safety facilities, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities to ensure staff’s safety.
2. High precision
Hydraulic system adopts vibration-absorption facilities to ensure high precision.
3. No damage
Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion.
4. Good red lead can be achieved because of high speed of vertical die spotting machine.

Parameter:

Model

NC50 hydraulic die spotting machine
Max spotting force(T) 50
Max lifting force(T) 20
Die opening space(mm) 1100
Size of working bench(mm) 1000×700
Bearing capacity of upper working bench(T) 1
Bearing capacity of lower working bench(T) 3
Suction force of upper magnetic disk(T) 25
Suction force of lower magnetic disk(T) 20
Fast up/down speed(mm/s) 70/70
Slow up/down speed(mm/s) <25
Eject capacity(T) 3
Eject stroke(mm) 100
Out stroke of lower working bench(mm) 1600
Motor power(KW) 5.5
Total height of machine(H)(mm) 3840
Land area of machine(mm) 3400×3100
Weight of machine(T) 6.5
