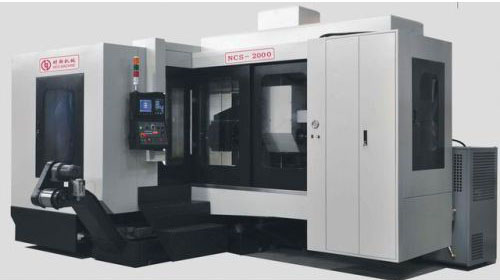

NCS2000 3-Axis Gun Drilling Machine

NCS2000 3-Axis Gun Drilling Machine

Description:

The 3-axis deep hole drilling machine is widely used in mold processing. With drill depth 2000mm, it is especially suitable for deep-hole processing. It is featured by high precision and high productivity.

Features:

1. Easy operation and maintenance
3-axis deep hole drilling machine has steady performance and it is convenient to operate and maintain with MITSUBISHI servo numerical control system.
2. It has compact structure with comparatively low height of table and enough size of table.
3. It adopts magnetic motor and automatic locking in case of power off during rolling;
4. 3-axis deep hole drilling machine is characterized by safety, reliability, high working efficiency.
5. Its main parts are from famous professional manufacturers and are reliable.
6. 3-axis deep hole drilling machine adopts original import pieces as electric components.

Parameter:

Type NCS2000 3-axis deep hole drilling machine
Bore of drill hole φ3-35mm
Maximum depth of one-off drill hole 2000mm
Dimension of work platform 1400x2600mm
X axis stroke 2500mm
Y axis stroke 1400mm
Z axis stroke 2050mm
Rapid feeding 5000mm/min
Maximum rotary sped of spindle 6000rpm
Spindle power 11kw
XYZ servo motor power XYZ servo motor power: 3kw/3kw/2.0kw
Pressure of cutting oil pump 100kg/cm2
Oil pump capacity of oil hydraulic pump 8-52L/min
Capacity of cutting oil tank 400L
Load weight of work platform 15000kg
Net weight of equipment 22000kg
External size of machine tool 7000x6200x3500mm
Total power 42kw
Numerical control system MITSUBISHI

Accessories for 3-axis deep hole drilling machine include standard fittings and available accessories. Standard accessories cover transformer, main shaft etc. If you need more information, please refer toNCS Series_pdf.
