Description:
NC120 hydraulic die spotting press is mainly applied in repair or verification of plastic die, hardware molding die. The mould can be turned from 0-180. Computer control and man/machine interface operation make the operation easy, quick, safe, and reliable. NC120 hydraulic die spotting press with max spotting force: 120T, area : 1300×1000mm is a newly-developed mold spotting press. The 120T vertical die spotting press adopts electric magnetic chuck, thus it can greatly improve work efficiency.
Application:
The 120T vertical die spotting press is mainly used in the repairing and assembling of various plastic moulds, or hardware die-casting die.
Features:
1. Large rigidity and small deformation
NC120 hydraulic die spotting press adopts welding type frame structure. Frame and sliding table are processed through tempering treatment, for the advantages of no stress, large rigidity and small formation.
2. Flatness and high precision
Upper and lower working benches and guide rails of pressure-plate die spotting machine are made from nodular cast iron and adopt manual scraping for surface processing, with sound flatness, high precision and small deformation.
3. Safe and energy-saving
NC120 hydraulic die spotting press supports electric control permanent magnet. It can ensure continuous magnet supply, which is safe and energy-saving.
4. No damage
Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion.
5. Good red lead can be achieved because impact is produced by die spotting with high speed.
6. NC120 hydraulic die spotting press is equipped with security device.
Components:

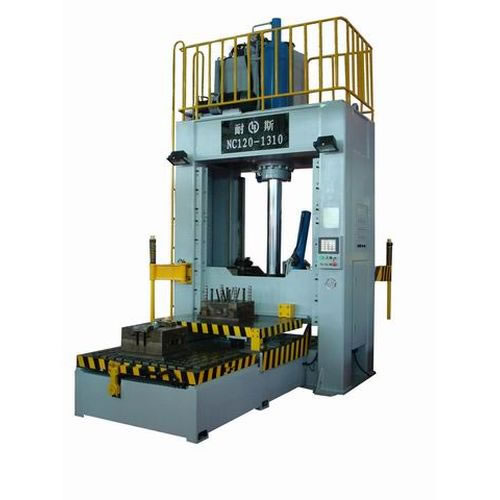

Front view
Side view
Parameter:
Model
|
NC120 hydraulic die spotting press
|
|
Maxspotting force(T)
|
120
|
|
Max lifting force(T)
|
40
|
|
Die opening space(mm)
|
1300
|
|
Size of working bench(mm)
|
1300×1000
|
|
Bearing capacity of upper working bench(T)
|
3
|
|
Bearing capacity of lower working bench(T)
|
8
|
|
Suction force of upper magnetic disk(T)
|
55
|
|
Suction force of lower magnetic disk(T)
|
40
|
|
Fast up/down speed(mm/s)
|
70/70
|
|
Slow up/down speed(mm/s)
|
<25
|
|
Eject capacity(T)
|
3
|
|
Eject stroke(mm)
|
100
|
|
Out stroke of lower working bench(mm)
|
2200
|
|
Motor power(KW)
|
7.5
|
|
Total height of machine(H)(mm)
|
4650
|
|
Land Area of machine(mm)
|
4300×3600
|
|
Weight of machine(T)
|
12
|
