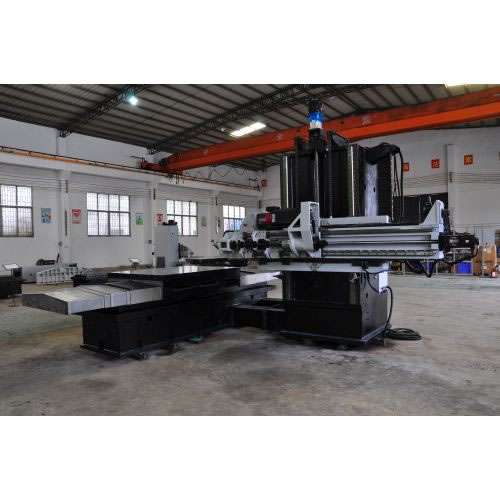

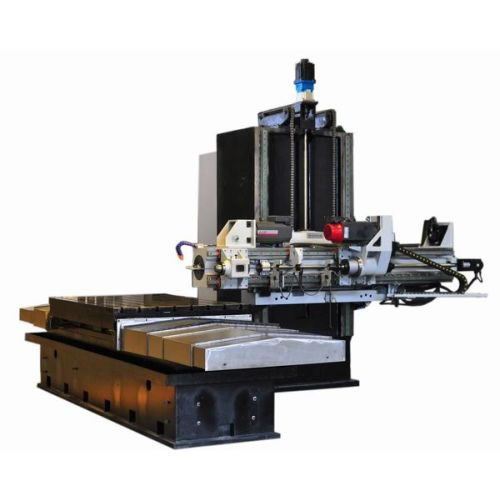

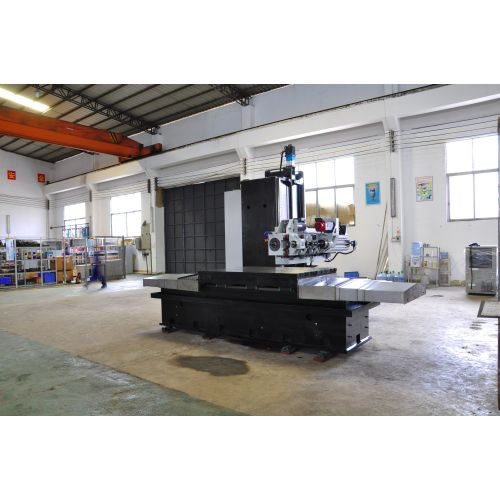

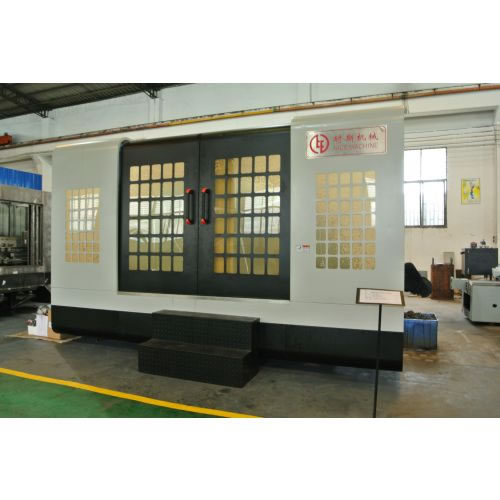

Drilling And Milling Compound Machine (NCSX Series)


Description:

NCSX series drilling and milling compound machine is new-developed machine, which combines milling and deep-hole processing. It is mainly applied in mold and mechanical manufacturing industry.

Main characteristics:

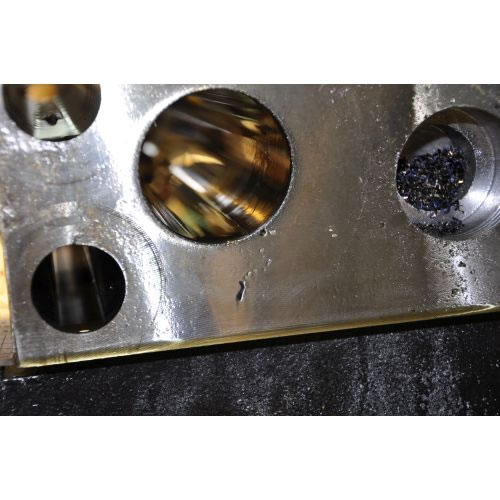

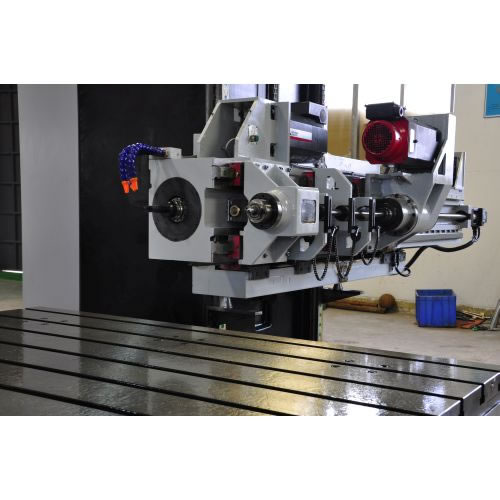

1. Drilling and milling compound machine can make milling, rigid tapping and deep-hole processing be finished in one-time clamping as it is equipped with powerful milling and cutting main shaft.
2. The machine is equipped with rotating work bench to reduce the clamping times of workpiece and to realize oblique hole.
3. Equipped with magnetic working bench, drilling and milling compound machine can achieve fast clamping. With ladder slit installed, clamping with different materials is available.

Detail:



Parameter:


Project NCSX-1000 drilling and milling compound machine
Processing
travel
Diameter of processed hole(mm) Ф3~Ф30
Maximum drill hole depth(mm) 1000
Travel of work bench(X-axis)(mm) 1000
Travel of sliding platform(Y-axis)(mm) 800
Processing
speed
Maximum rotating of main shaft(rpm) 6000
Feeding speed of main shaft(mm/min) 0~3000
Movement speed of work bench(X-axis)(mm/min) 8000
Movement speed of sliding platform(Y-axis)(mm/min) 8000
Dynamic parameter X-axis feed motor(work bench)(N.m) 22
Y-axis feed motor(guide way)(N.m) 22
Z-axis feed motor(drill stem box)(N.m) 12
Motor of gun drill main shaft(kW) 15
Other Pressure scope of cooling liquid(Mpa) 2~11
Flow rate scope of cooling liquid(L/min) 6~110
Size of work bench(mm) 1200×800
Load-bearing of work bench(t) 5
Total power of machine tool(kW) 38
External size of machine tool(mm) 5300×4000×3000
Total weight of machine tool(t) 9
Machine tool control system MITSUBISHI

NOTE:


We can do the installation for free. The buyers just need to be responsible for our technician's VISA fee, air-ticket, hotel and meals.
