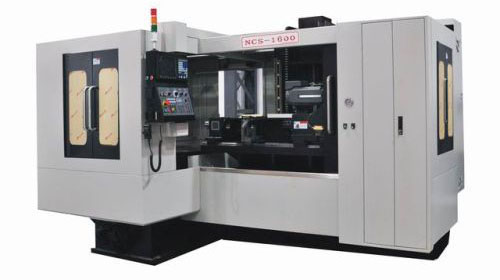

NCS1600 3-Axis Gun Drilling Machine

NCS1600 3-Axis Gun Drilling Machine

Description:

NCS1600 CNC gun drilling machine is widely used in deep hole mold processing, like water channel hole, punch hole, hot runner hole, hydraulic valve, distributor, heat exchanger plate etc. With long drill depth 1600mm, it is especially fit for deep-hole processing. With three spindles, it CNC gun drilling machine greatly improve work efficiency. By absorbing essence of similar products at home and abroad, our company is a professional and reliable manufacturer of 3-spindle gun hole machine in China.

Features:

1. NCS1600 CNC gun drilling machine supports good flexibility with modular construction, and standard fittings.
2. Different levels of automation can be incorporated to satisfy custom requirements.
3. It is convenient to operate and maintain NCS1600 CNC gun drilling machine.
4. A color touch screen HMI provide user with interface and intelligent cutting parameters optimized for gun drilling.

Parameter:

Type NCS1600 CNC gun drilling machine
Bore of drill hole φ3-35mm
Maximum depth of one-off drill hole 1600mm
Dimension of work platform 1400x2200mm
X axis stroke 2100mm
Y axis stroke 1200mm
Z axis stroke 1650mm
Rapid feeding 5000mm/min
Maximum rotary sped of spindle 6000rpm
Spindle power 11kw
XYZ servo motor power 3kw/3kw/2.0kw
Pressure of cutting oil pump 100kg/cm2
Oil pump capacity of oil hydraulic pump 8-52L/min
Capacity of cutting oil tank 400L
Load weight of work platform 12000kg
Net weight of equipment 17000kg
External size of machine tool 6300x5800x3200mm
Total power 40kw
Numerical control system MITSUBISHI

Accessories for NCS-1600 CNC gun drilling machine include standard fittings and available accessories. Standard accessories cover transformer, main shaft etc. If you need more information, please refer toNCS Series_pdf.
