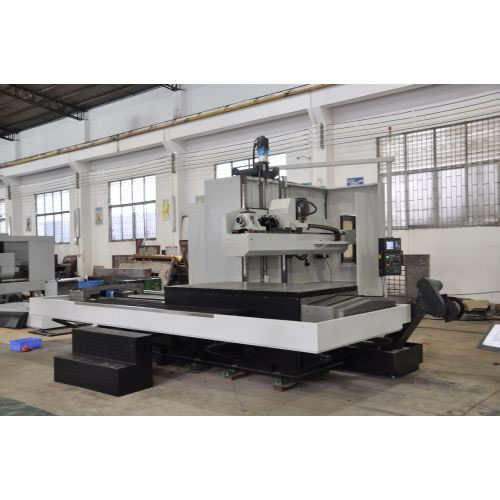

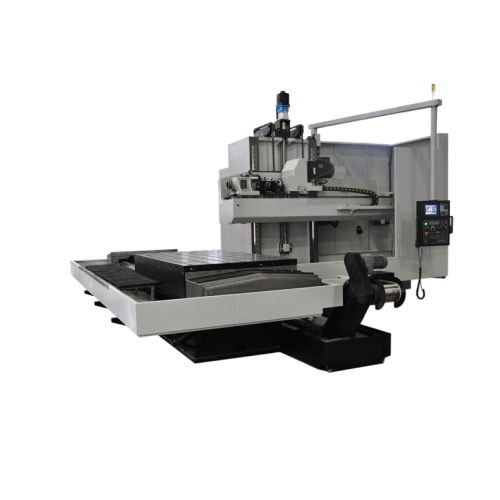

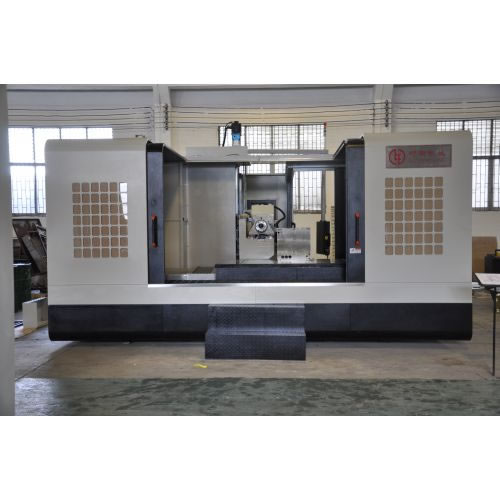

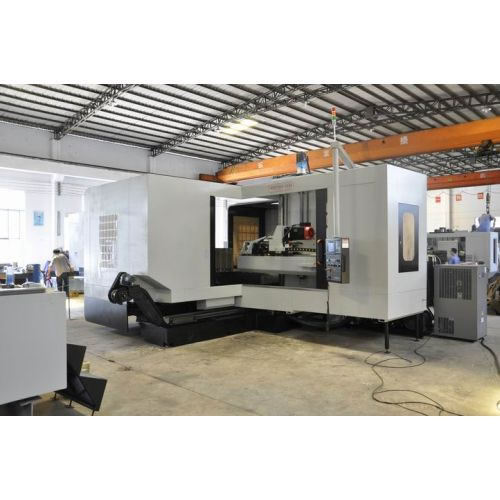

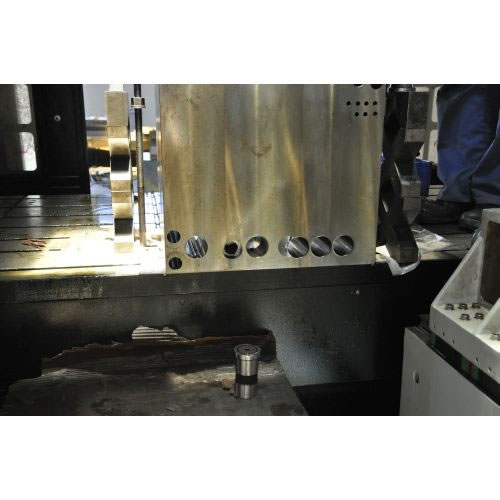

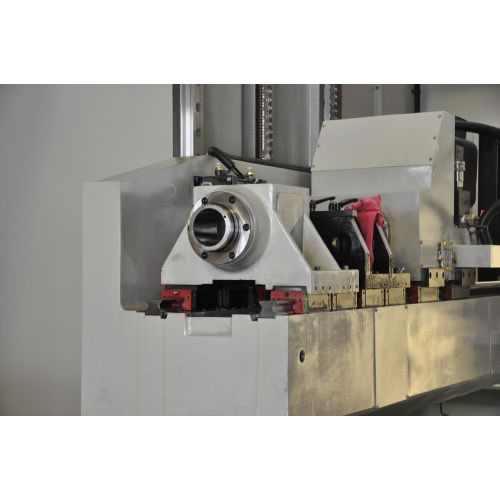

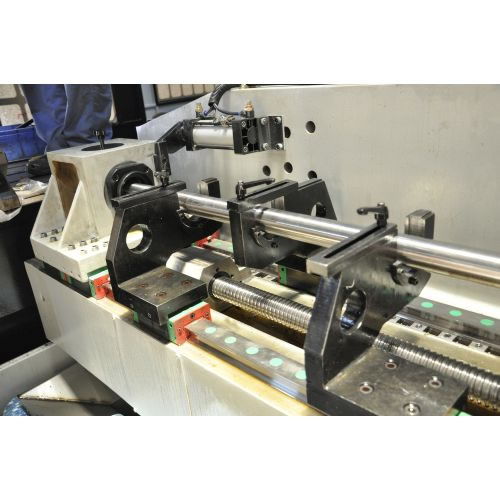

Spray and Absorb Drilling Machine (NCSP1500)

Description:

NCSP series spray and absorb drilling machine is a multifunctional horizontal ejector drill machine which combines spray and absorb drill, knife grain drill and gun drill. This deep hole drill machine can be used in mold and mechanical manufacturing industry. Our horizontal ejector drill machine (spray and absorb drilling machine) is classified into NCSP2515-1500, NCSP2012-1500 and NCSP1512-1500. Their maximum drill depth of gun drill can reach 1500mm.

Features of NCSP1500 Horizontal Ejector Drill Machine:

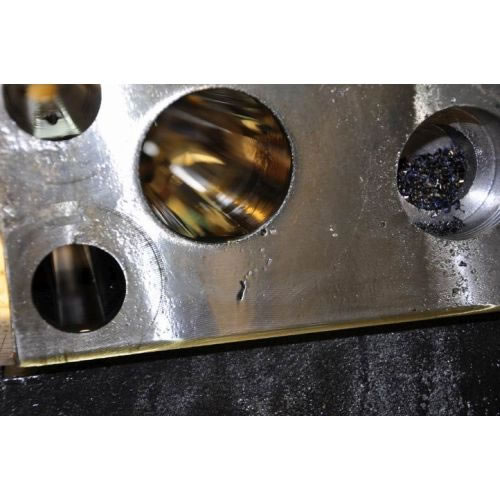

1. The machine is characterized by high efficiency, high precision and fine surface finish, 0.4~0.8.
2. The machine adopts powerful milling main shaft to achieve one- time drilling and milling processing.

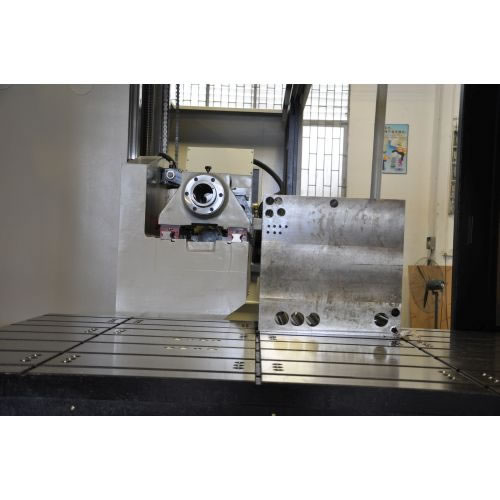

3. The spray and absorb drilling machine is equipped with rotating work bench to reduce the clamping times of workpiece and to realize oblique hole.

Details of NCSP1500 Horizontal Ejector Drill Machine:

Project		NCSP2515-1500	NCSP2012-1500	NCSP1512-1500
Processing length	Diameter of drill hole(mm)	Ф3-Ф35(Gun drill) Ф18-Ф65(Spray and absorb drill)	Ф3-Ф35(Gun drill) Ф18-Ф65(Spray and absorb drill)	Ф3-Ф35(Gun drill) Ф18-Ф65(Ejector Drill)
	X-axis (length of work bench)(mm)	2500	2000	1500
	Y-axis (length of sliding plate)(mm)	1500	1200	1200
	W-axis (length of square sliding guide way)(mm)	400	400	400
	Maximum drill depth of gun drill(mm)	1500	1500	1500
	Maximum drill depth of Horizontal Ejector Drill (mm)	1000	1000	1000
Processing speed	Maximum rotating speed of gun drill main shaft(rpm)	4500	4500	4500
	Maximum rotating speed of milling main shaft(selective)(rpm)	4500	4500	4500
	X-axis movement speed of work bench(mm/min)	0-10000	0-10000	0-10000
	Y-axis movement speed of slide guide way(mm/min)	0-10000	0-10000	0-10000
	Feeding speed of milling(selective)(mm/min)	0-2000	0-2000	0-2000
	Feeding speed of gun drill main shaft(mm/min)	0-3000	0-3000	0-3000
Dynamic parameter	X-axis feeding motor(N.m)	30	30	22
	Y-axis feeding motor(N.m)	40	40	22
	Z-aixs feeding motor(N.m)	22	22	22
	W-axis feeding motor(N.m)	22	22	22
	Motor of drill stem main shaft(kW)	18.5	18.5	18.5
	Motor of milling main shaft(selective)(kW)	7.5	7.5	7.5
	Total power of machine tool(kW)	60	58	54
Other information of Horizontal Ejector Drill Machine	Pressure scope of cooling liquid(Mpa)	Gun drill 2-11 Spray and absorb drill 0.1-2	Gun drill 2-11 Spray and absorb drill 0.1-2	Gun drill 2-11 Spray and absorb drill 0.1-2
	Flow rate scope of cooling liquid(L/min)	Gun drill 6-110 Ejector Drill 40-165	Gun drill 6-110 Spray and absorb drill 40-165	Gun drill 6-110 Spray and absorb drill 40-165
	Size of work bench(mm)	2700×1200	2200×1200	1700×1200
	Load-bearing of work bench(t)	12	10	6
	Taper of main shaft end	BT40	BT40	BT40
	External size of machine tool(mm)	6660×6800×4000	6660×6200×3800	6600×6100×3300
	Total weight of machine tool(t)	24	21	13
	Machine tool control system	Mitsubishi (or FANUC selective)	Mitsubishi (or FANUC selective)	Mitsubishi (or FANUC selective)
