Description:
NC50-1007 hydraulic die spotting machine is mainly used to process die. It is suitable for middle and large mould with spotting force 50T, working bench 1000×700. Compared with traditional die tryout press, NC50-1007 hydraulic die spotting machine adopts electric magnetic chuck and it is unnecessary to fix screws. Thus, it can greatly reduce time and labor. Additionally, mould can be turned from 0-180. Computer control and man/machine interface make operation easy, quick, safe, and reliable. The hydraulic die spotting machine can work together with mold turnover machine.
Types:
50T Disk50T Pressure Plate
Application:
The hydraulic die spotting machine is applied in repairing and assembling of various plastic moulds, or metal die-casting dies.
Components:

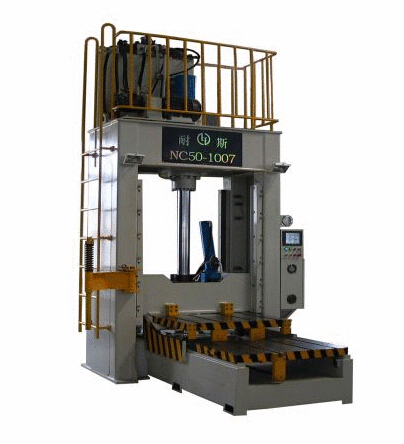

Front view

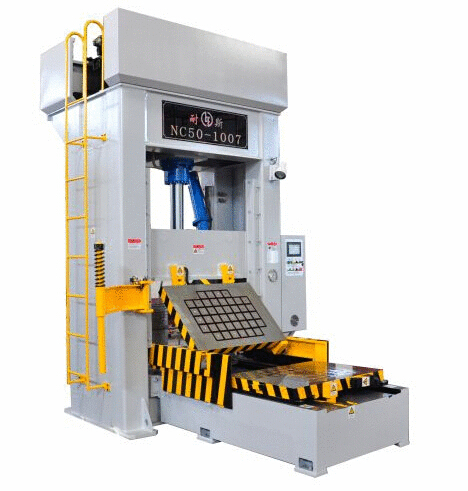

Side view
Features:
1. Small formation
NC50-1007 hydraulic die spotting machine adopts welding type frame structure. Frame and sliding table are processed through tempering treatment, for the advantages of no stress, large rigidity and small formation.
2. Flatness and high precision
Upper and lower work benches of hydraulic die spotting machine are made from nodular cast iron and adopt manual scraping for surface processing, with sound flatness, high precision and small deformation.
3. Safe and energy-saving
NC50-1007 hydraulic die spotting machine supports electric control permanent magnet. It can ensure continuous magnet supply, which is safe and energy-saving.
4. Perfect safety facilities There are complete safety facilities to ensure safety, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities.
5. High precision
NC50-1007 hydraulic die spotting machine has high precision because hydraulic system adopts vibration-absorption facilities which will reduce hydraulic impact.
6. No damage
Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion.
7. Good red lead can be achieved because of high speed of die tryout press.
Parameter:
Model
|
NC50 hydraulic die spotting machine
|
Max spotting force(T)
|
50
|
Max lifting force(T)
|
20
|
Die opening space(mm)
|
1100
|
Size of working bench(mm)
|
1000×700
|
Bearing capacity of upper working bench(T)
|
1
|
Bearing capacity of lower working bench(T)
|
3
|
Suction force of upper magnetic disk(T)
|
25
|
Suction force of lower magnetic disk(T)
|
20
|
Fast up/down speed(mm/s)
|
70/70
|
Slow up/down speed(mm/s)
|
<25
|
Eject capacity(T)
|
3
|
Eject stroke(mm)
|
100
|
Out stroke of lower working bench(mm)
|
1600
|
Motor power(KW)
|
5.5
|
Total height of machine(H)(mm)
|
3840
|
Land area of machine(mm)
|
3400×3100
|
Weight of machine(T)
|
6.5
|
