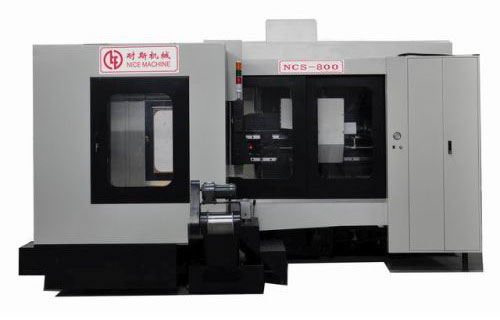

NCS800 3-Axis Gun Drilling Machine

NCS800 3-Axis Gun Drilling Machine

Description:

NCS-800 3-axis gun drilling machine is widely used in drilling and reaming, tapping etc, especially for deep -hole mold processing, like water channel hole, punch hole, hot runner hole, hydraulic valve, distributor, heat exchanger plate etc. Its drill depth is 800mm. On the basis of absorbing advanced technology of high speed drilling machine abroad and at home, NCS-800 3-axis gun drilling machine ensures high precision and high efficiency.

Features:

1. This NCS NCS-800 3-axis gun drilling machine is developed for large mold base of work material and it uses a column type bed with NC controls. The table affords heavy load.
2. The stand column, pedestal, slide platform, work platform and other main components of machine tools are made of castings, with low deformation and high precision.
3. Simple operation
NCS NCS-800 3-axis gun drilling machine is featured by steady performance and simple operation as it adopts MITSUBISHI servo numerical control system.
4. Computerized numerical control assures accurate positioning and automatic operation.
5. The main shaft adopts imported brute-force motor.
Accessories for NCS-800 3-axis gun drilling machine include standard fittings and available accessories. Standard accessories cover transformer, main shaft etc. If you need more information, please refer toNCS Series_pdf.

Parameter:

Type NCS-800 3-axis gun drilling machine
Bore of drill hole φ3-30mm
Maximum depth of one-off drill hole 800mm
Dimension of work platform 700x900mm
X axis stroke 800mm
Y axis stroke 800mm
Z axis stroke 850mm
Rapid feeding 3000mm/min
Maximum rotary sped of spindle 6000rpm
Spindle power 7.5kw
XYZ servo motor power 2kw/2kw/1.5kw
Pressure of cutting oil pump 100kg/cm2
Oil pump capacity of oil hydraulic pump 8-42L/min
Capacity of cutting oil tank 400L
Load weight of work platform 5000kg
Net weight of equipment 8000kg
External size of machine tool 4700x2700x2600mm
Total power 30kw
Numerical control system MITSUBISHI
