Description:

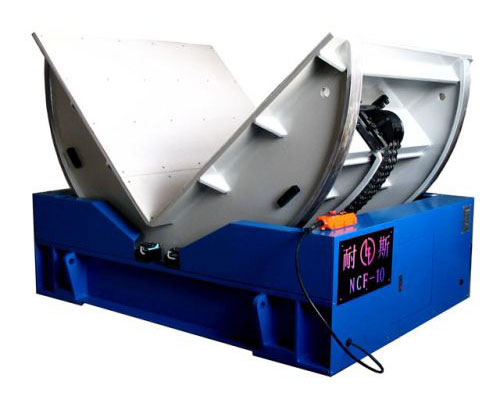

The mechanical mould tilter is mainly used for dislocation and turning-over of heavy object, to make goods change between vertical and horizontal direction. It is widely applied in mold producing industry, injection industry and die-casting industry. For vertical die press machine, NCF-10 mechanical mould tilter is inseparable auxiliary equipment. With rolling capacity 10T, it is a desirable product for adjusting of large mold.
Features:
1. It is easy to use and to operate.
2. Safety and Reliability
NCF-10 mechanical mould tilter is characterized by safety and reliability, stability, which avoids the disadvantage of manual turnover, like insecurity, which makes the turnover easy and fast.
3. It has compact structure and small space occupation
4. NCF-10 mechanical mould tilter can lock automatically when power is off.
Parameter:
Model
|
NCF-10 mechanical mould tilter
|
Rolling capacity
|
10T
|
Time for rolling by 90
|
25s
|
Size of bench surface
|
1400x1270mm
|
Height of bench surface
|
700mm
|
External size
|
1400x1900x1980mm
|
Central size
|
50mm
|
Motor power
|
3.0kw
|
Weight of machine tool
|
3.8T
|
