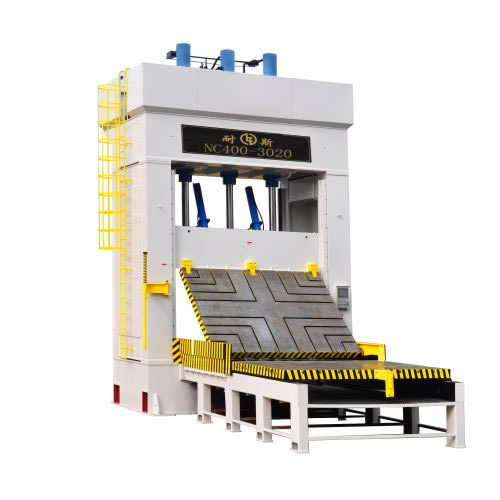

NC400-3020 Vertical Die Spotting Press

NC400-3020 Vertical Die Spotting Press

Description:

NC400-3020 vertical die tryout press is used in adjusting and maintenance of die and mold. It is faster, more precise, more reliable, compared with traditional die spotting machine. NC400-3020 vertical die tryout press has spotting force 400T and working bench 3000×2000. Besides, the die spotting machine adopts electric magnetic chuck, which greatly improves work efficiency. Our company is the only one that uses the advanced technology, electric magnetic chuck.

Features:

1. High precision
Hydraulic system adopts vibration-absorption facilities, to reduce hydraulic impact and ensure precision of facilities.
2. NC400-3020 vertical die tryout press is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion.
3. Good red lead can be achieved because impact is produced by die spotting with high speed.
4. NC400-3020 vertical die tryout press is equipped with perfect safety facilities to ensure men’s security, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other protection facilities.
Anti-falling facilitiesLocking facilities
Safety supporting facilitiesRating protection

Components:



Front viewSide view




Parameter:

Model NC400-3020 vertical die tryout press
Max spotting force(T)

400
Max lifting force(T)

100
Die opening space(mm)

2600
Size of working bench(mm)

3000×2000
Bearing capacity of upper working bench(T)

18
Bearing capacity of lower working bench(T)

40
Fast up/down speed(mm/s)

80/80
Slow up/down speed(mm/s)

25
Eject capacity(T)

15
Eject stroke(mm)

200
Out stroke of lower working bench(mm)

4400
Motor power(KW)

37
Total height of machine(H)(mm)

7850
Land area of machine(mm)

8100×7000
Weight of machine(T)

80
