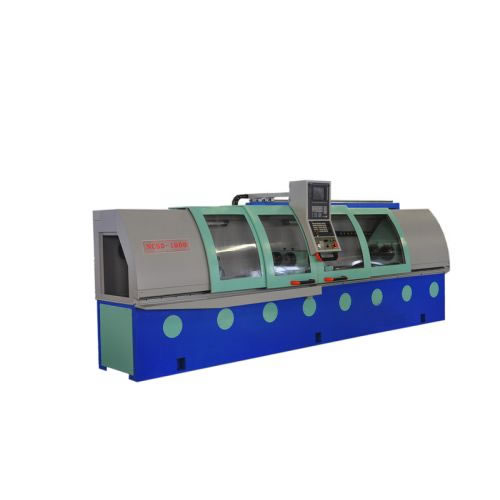

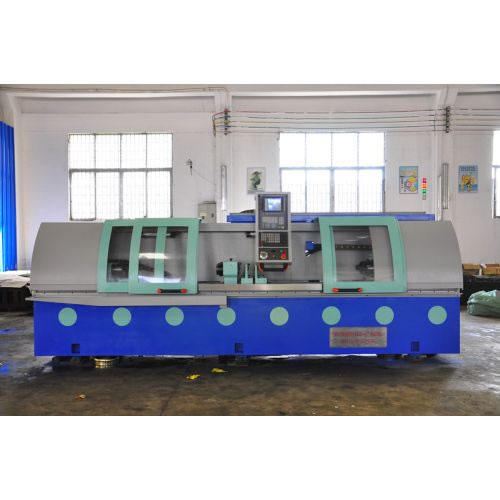

NCSD2Z1000 2-Axis Gun Drilling Machine

NCSD2Z1000 2-Axis Gun Drilling Machine

Description:

NCSD2Z1000 2-axis gun drilling machine is widely used in drilling and reaming, tapping etc. It has a wide application in car industry, locomotives, shipbuilding, aviation and engineering mechanics. It is a professional machine tool for processing shaft parts. NCSD2Z1000 2-axis gun drilling machine is featured by high precision, reliability, low cost and convenience to operate. Its drill depth reaches 1000mm. It can make the deep-hole processing efficient, precise as well as fine surface finish.

Features:

1. Wide work space facilitates the clamping and processing of large workpiece.
2. NCSD2Z1000 2-axis gun drilling machine is featured by steady performance, simple operation as it adopts MITSUBISHI servo numerical control system.
3. NCSD2Z1000 2-axis gun drilling machine is a professional machine tool in deep hole processing. It makes an efficient, precise drilling as well as fine surface finish.


Parameter:

Item Specification Unit Data
Control system SIEMENS 828D
Coverage of machine tool (L× W × H) mm 4990×2085×1880
Overall weight kg 4500
Axis stroke Z-axis(drill rod box)stroke mm 1350
Dynamic parameters Speed of main shaft r/min 200-6,000
Motor power of main shaft kW 11
Z-axis motor kW 2.1
Total power of machine tool kW 25
Speed Rapid feed speed mm/min 0-4,000
Manual feed speed mm/min 0-2,000
Cutting feed speed mm/min 0-150
Processing Hole linearity mm 1/1000
Hole surface precision H8-H9
Processing speed S45C(ø10×500mm) min 5-10
Maximum drilling depth mm 1200
Hole diameter mm Single-shaft 3-30 Double-shaft 8-30
Coolant pressure range Mpa 2-11
Coolant flow range L/min 6-142

Standard fittings for 2-axis gun drilling machine:


TransformerChip cleaner
Oil temperature control machine


Main shaft

Available accessories:


Guide sleeve
Tool sharpening machine
Chipping oil
DeoilerRubber sheathDrill
