NC70-1007 vertical die spotting press

NC70-1007 vertical die spotting press

Description:

NC70-1007 vertical mold spotting machine is mainly applied in repair or verification of plastic die, hardware molding die. The machine has max spotting force 70T, working bench 1000×700mm. The machine is a newly-developed machine on the basis of traditional die spotting press. It adopts electric magnetic chuck, which improves work efficiency and save labor. Besides, it is simple to operate NC70-1007 vertical mold spotting machine with computer control and man/machine interface.

Types:



70T Disk70T Pressure Plate

Application:

The NC70-1007 mold spotting machine is mainly used in repairing and assembling of various plastic mould, or hardware molding die.

Components:

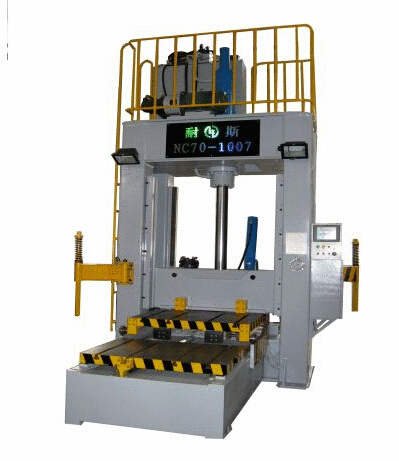

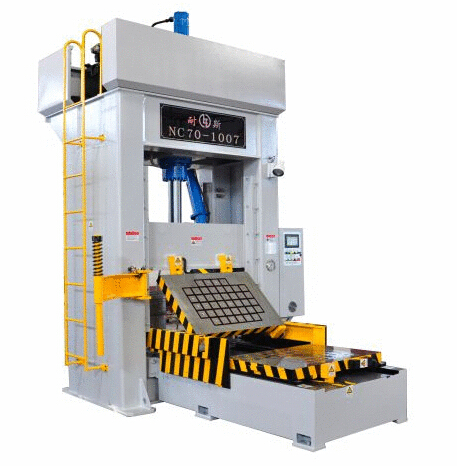

Front viewSide view

Features:

1. Large rigidity and small deformation
NC70-1007 mold spotting machine adopts welding type frame structure. Frame and sliding table are processed through tempering treatment, for the advantages of no stress, large rigidity and small formation.
2. Flatness and high precision
Upper and lower working benches and guide rails of pressure-plate NC70-1007 mold spotting machine are made from nodular cast iron and adopt manual scraping for surface processing, with sound flatness, high precision and small deformation.
3. Safe and energy-saving
NC70-1007 mold spotting machine supports electric control permanent magnet. It can ensure continuous magnet supply, which is safe and energy-saving.
4. Perfect safety facilities
There are complete safety facilities to ensure safety, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities.
5. High precision
NC70-1007 mold spotting machine has high precision because hydraulic system adopts vibration-absorption facilities which will reduce hydraulic impact.
6. Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion.
7. Good red lead can be achieved because of high speed.

Parameter:

Model NC70 vertical mold spotting machine

Max spotting force(T)

70
Max lifting force(T)

20
Die opening space(mm)

1100
Size of working bench(mm)

1000×700
Bearing capacity of upper working bench(T)

1
Bearing capacity of lower working bench(T)

3
Suction force of upper magnetic disk(T)

25
Suction force of lower magnetic disk(T)

20
Fast up/down speed(mm/s)

70/70
Slow up/down speed(mm/s)

<25
Eject capacity(T)

3
Eject stroke(mm)

100
Out stroke of lower working bench(mm)

1600
Motor power(KW)

5.5
Total height of machine(H)(mm)

4160
Land area of machine(mm)

3400×3100
Weight of machine(T)

6.5
