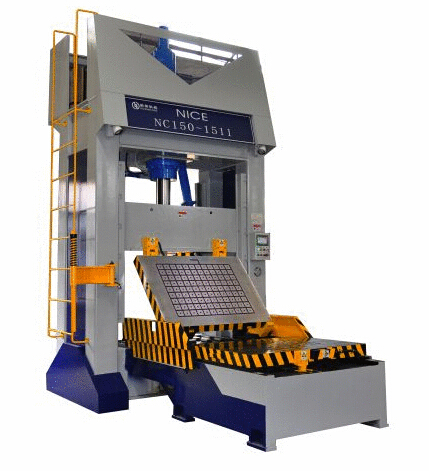

NC150-1511 Magneto electric Die Spotting Press

NC150-1511 Magneto electric Die Spotting Press

Description:

NC150 hydraulic die tryout press is mainly applied in repair or verification of plastic die, hardware molding die. The mould can be turned from 0-180. On the basis of die spotting press, the machine adopts electric magnetic chuck, thus it greatly improves work efficiency. Computer control and man/machine interface operation makes it easy, quick, safe, and reliable to use the machine. With max spotting force 150T, working bench 1500×1100mm NC150 hydraulic die tryout press is fit for middle and large die.

Types:


150T Disk150T Pressure Plate


Features:

1. Safe and energy-saving
NC150 hydraulic die tryout press supports electric control permanent magnet. It can ensure continuous magnet supply, which is safe and energy-saving.
2. Perfect safety facilities
There are completer safety devices to ensure man’s security, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities
3. High precision
NC150 hydraulic die tryout press vibration-absorption facilities, to reduce hydraulic impact and ensure precision of facilities.
4. No damage
NC150 hydraulic die tryout press is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion.
5. Good red lead can be achieved because of high speed.
6. Easy and reliable operation
It is easy, quick, safe, and reliable to operate NC150 hydraulic die tryout press with computer control and man/machine interface.

Components:

Front viewSide view

Parameter:

Model NC150 hydraulic die tryout press
Max spotting force(T) 150
Max lifting force(T) 50
Die opening space(mm) 1400
Size of working bench(mm) 1500×1100
Bearing capacity of upper working bench(T) 5
Bearing capacity of lower working bench(T) 10
Suction force of upper magnetic disk(T) 70
Suction force of lower magnetic disk(T) 55
Fast up/down speed(mm/s) 70/70
Slow up/down speed(mm/s) <25
Eject capacity(T) 3
Eject stroke(mm) 100
Out stroke of lower working bench(mm) 2400
Motor power(KW) 11
Total height of machine(H)(mm) 5150
Land area of machine(mm) 4700×4000
Weight of machine(T) 18
