Description:

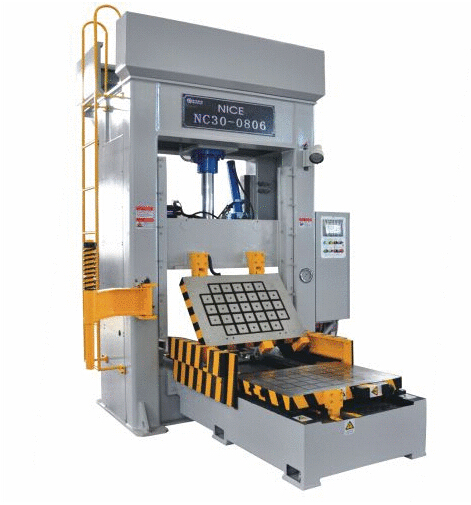

NC30-0806 vertical die spotting press is mainly applied in repair or verification of plastic die, hardware casting die. With. max spotting force 30T, workbench 800×600mm. NC30-0806 die spotting press is fit for medium and large mold. On the basis of traditional vertical die spotting, NC30-0806 die spotting press adopts electric magnetic chuck, thus it is unnecessary to fix screws. Thus, it can greatly improve work efficiency and save labor. Besides, the mould can be turned from 0-180. It is easy to operate NC30-0806 vertical die spotting press with computer control and man/machine interface.
Model:
Application:
NC30-0806 vertical die spotting press is mainly applied in repair or verification of plastic die, hardware casting die,is the main product of our company which takes a great effort and time of our technician to develop. It absorbs the essence of products at home and abroad. NC30-0806 vertical die spotting press replaces the traditional simple fitting of knocking by copper bar because of its fast and automation operation, which greatly improves efficiency and precision of die spotting press.
Components:
Front view
Side view
Features:
1. Perfect safety facilities
There are complete safety facilities to ensure reliability and safety, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities.
2. High precision
NC30-0806 vertical die spotting press has high precision because hydraulic system adopts vibration-absorption facilities which will reduce hydraulic impact.
3. No damage
Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion.
4. Good red lead can be achieved because of high speed.
Parameter:
|
Model
|
NC30 vertical die spotting press
|
|
Max spotting force(T)
|
30
|
|
Max lifting force(T)
|
12
|
|
Die opening space(mm)
|
1000
|
|
Size of work bench(mm)
|
800×600
|
|
Bearing capacity of upper working bench(T)
|
0.5
|
|
Bearing capacity of lower working bench(T)
|
2
|
|
Suction force of upper magnetic disk(T)
|
20
|
|
Suction force of lower magnetic disk(T)
|
15
|
|
Fast up/down speed(mm/s)
|
70/70
|
|
Slow up/down speed(mm/s)
|
<25
|
|
Eject capacity(T)
|
3
|
|
Eject stroke(mm)
|
100
|
|
Out stroke of lower working bench(mm)
|
1400
|
|
Motor power(KW)
|
4.0
|
|
Total height of machine(H)(mm)
|
3300
|
|
Land area of machine(mm)
|
3200×2900
|
|
Weight of machine(T)
|
4.8
|
