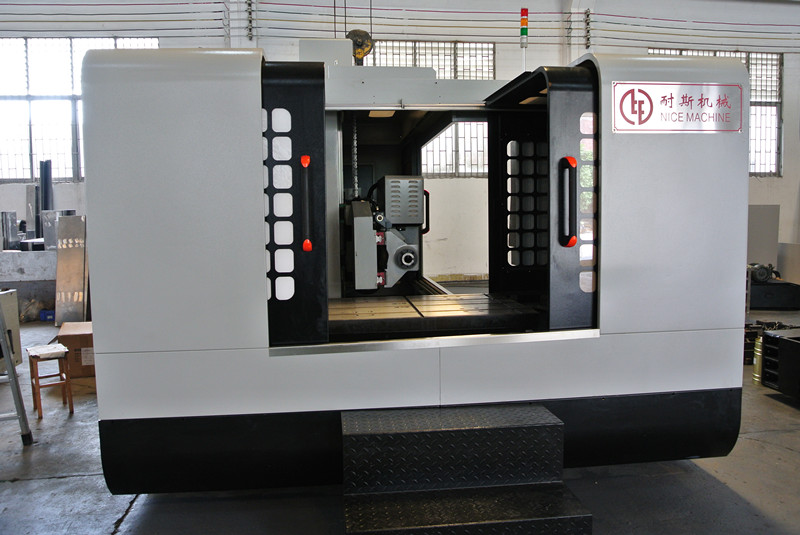

NCS1000 3-Axis Gun Drilling Machine

NCS1000 3-Axis Gun Drilling Machine

Description:

NCS1000 3-spindle gun hole machine is widely applied in deep hole processing. With 3 axis, the machine greatly improve the work efficiency. Besides, its drill depth reaches 1000mm. On the basis of absorbing essence of similar products, NCS1000 3-spindle gun hole machine is developed by our company.

Features:

1. NCS1000 3-spindle gun hole machine adopts imported linear guide rail and ball screw so as to ensure the processing precision.
2. The stand column, pedestal, slide platform, work platform and other main components of machine tools are made of castings with low deformation and high precision.
3. NCS1000 3-spindle gun hole machine is featured by steady performance and simple operation as it adopts MITSUBISHI servo numerical control system.
4. The wide work space will conducive to clamping and processing of large workpiece.

Parameter:

Type NCS-1000 3-spindle gun hole machine
Bore of drill hole φ3-30mm
Maximum depth of one-off drill hole 1000mm
Dimension of work platform 800x1200mm
X axis stroke 1000mm
Y axis stroke 800mm
Z axis stroke 1050mm
Rapid feeding 3000mm/min
Maximum rotary sped of spindle 6000rpm
Spindle power 7.5kw
XYZ servo motor power 2kw/2kw/1.5kw
Pressure of cutting oil pump 100kg/cm2
Oil pump capacity of oil hydraulic pump 8-42L/min
Capacity of cutting oil tank 400L
Load weight of work platform 5000kg
Net weight of equipment 9500kg
External size of machine tool 5000x3000x2600mm
Total power 30kw
Numerical control system MITSUBISHI
Accessories for NCS-1000 3-spindle gun hole machine include standard fittings and available accessories. Standard accessories cover transformer, main shaft etc. If you need more information, please refer toNCS Series_pdf.
