NCW-120 Horizontal Die tryout press

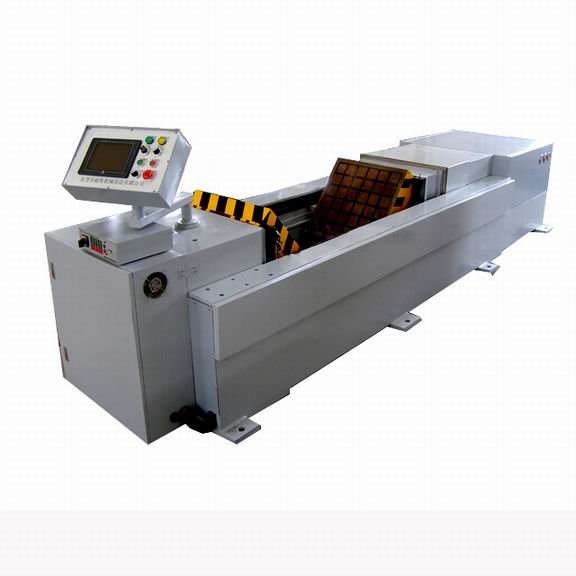

NCW-120 Horizontal Die tryout press

Description:

The NCW-120 hydraulic die spotting press machine is mainly applied in repairing and assembling of various plastic mould, or hardware casting mold. It can turn from 0-90 degree and it is especially suitable for medium and small-size mould. The max pressure it can endure is 120T. NCW-120 hydraulic die spotting press machine replaces manual hammering, which improves work efficiency and precision. Besides, it ensures the moulds without burrs because of protection device.

Features:

1. High precision
Hydraulic system adopts vibration-absorption facilities, to reduce hydraulic impact and ensure precision of facilities.
2. Low-pressure protection facility
NCW-120 hydraulic die spotting press machine is equipped with low-pressure protection facility, to prevent damages caused by collision and insertion.
3. Good red lead can be achieved because impact is produced by die spotting with high speed.
4. Regional molding is available. (A/B plate mold)
5. NCW-120 hydraulic die spotting press machine is equipped with safety facilities to guarantee men’s safety.

Parameter:

Model NCW-120 hydraulic die spotting press machine
Max pressure (T) 120
Die opening space (mm) 1650
Max stroke (mm) 1400
Max capacity size (mm) 800×800
Fast forward/fast backward speed (mm/s) 70
Tool feed speed/tool feed speed (mm/s) <25
Electric permanent magnetic force (T) 36
Turnover capacity (T) 3
Angle(degree) 0-90
Motor power (KW) 7.5
Machine size (mm) 1400×1200×4800
Machine total weight (T) 11
