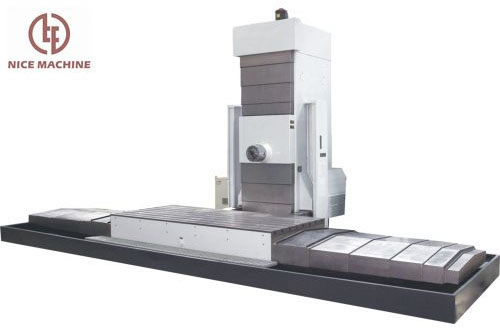

CNC Horizontal Milling Machine (NCWX Series)

Description:

CNC Horizontal milling machine is suitable for various mechanical processing and is applied in mold and manufacture industry. It is featured by stability, and reliability. NCWX series is classified into NCWX1508, NCWX2012 and NCWX3015. Equipped with numerical control system, it is very easy and fast to operate CNC horizontal milling machine.

Features:

1. Solidity and shock resistance
The CNC horizontal milling machine is solid, shock resistant as it adopts HT300 cast iron with high intensity. Besides, surface of work bench has high hardness as it goes through high-frequency heating.
2. The machine adopts imported main shaft with good performance and no need to maintain.
3. High precision
The CNC horizontal milling machine is featured by excellent rigidity, high precision and high stability of mechanical transmission as it adopts well-known linear guided stage with high precision and ball screw with long diameter.
4. The machine adopts Japanese MITSUBISHI numerical control system with stable performance, simple operation and better expansibility.


Parameter:

Index NCWX1508 NCWX2012 CNC horizontal milling machine NCWX3015
X-axis(travel of work bench)(mm) 1500 2000 3000
Y-axis(travel of main shaft box)(mm) 800 1200 1500
Z-axis(travel of main shaft box)(mm) 650 850 850
Work bench fast speed(X-axis)(mm/min) 10000 10000 10000
Main spindle box fast speed(Y-axis)(mm/min) 10000 10000 10000
Maximum rotating speed of main shaft (rpm) 6000 6000 6000
Motor of main shaft(kw) 22 22 22
X-axis motor(kw) 30 40 40
Y-axis motor(kw) 22 40 40
Z-axis motor(kw) 22 40 40
Total power of machine tool(kw) 51 54 54
Size of work bench(mm) 1200x800 2200X1200 2700X1200
Load bearing of work bench(T) 5 10 15
Distance from the main shaft end to the work bench center(mm) 125-775 430-1280 430-1280
Distance from the center of main shaft to the surface of work bench(mm) 0-800 0-1200 0-1500
Taper of main shaft end BT50 BT50 BT50
External size of machine tool(mm) 4500X4800X3650 6800X5700X3700 8300X5700X4000
Machine tool control system MITSUBISHI MITSUBISHI MITSUBISHI
